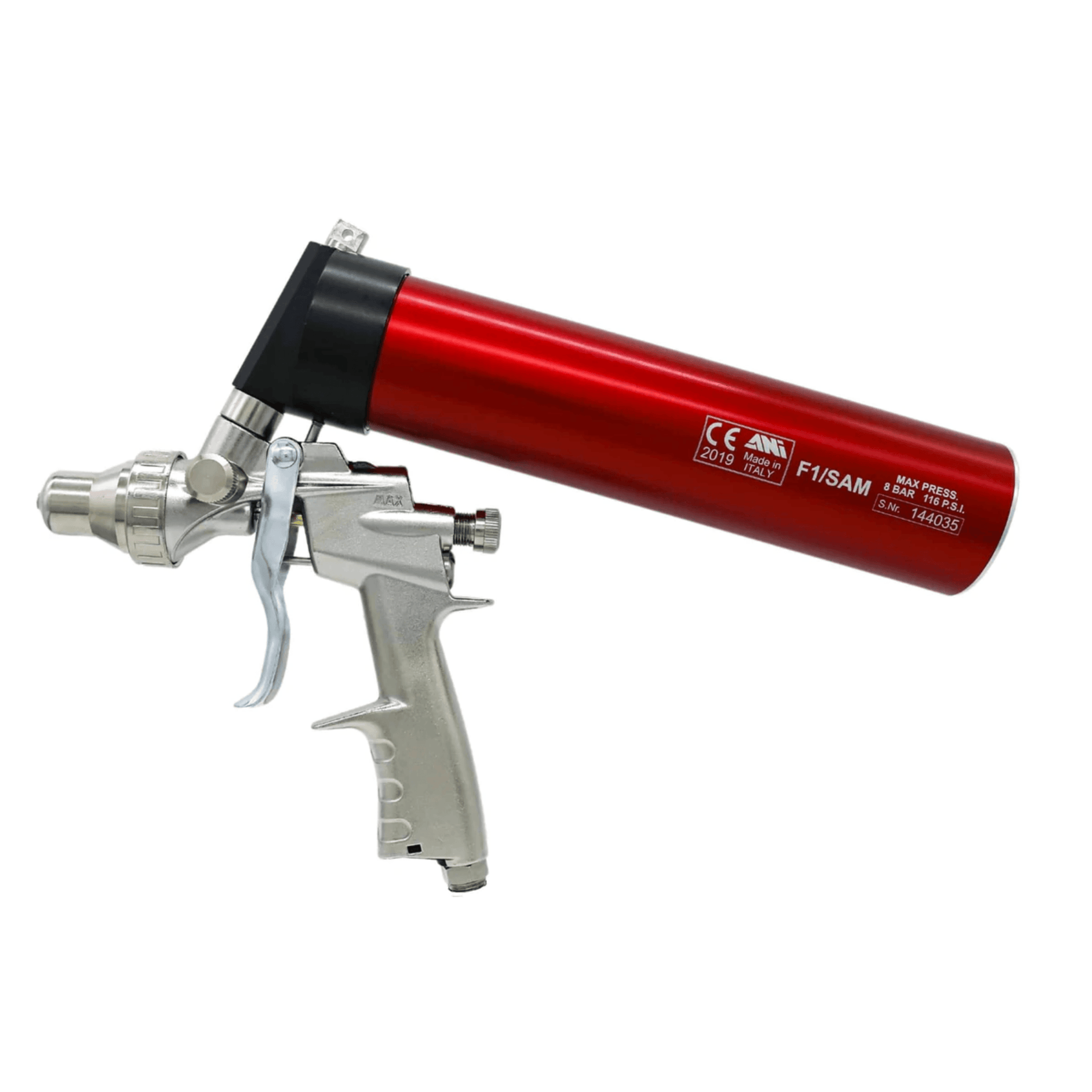

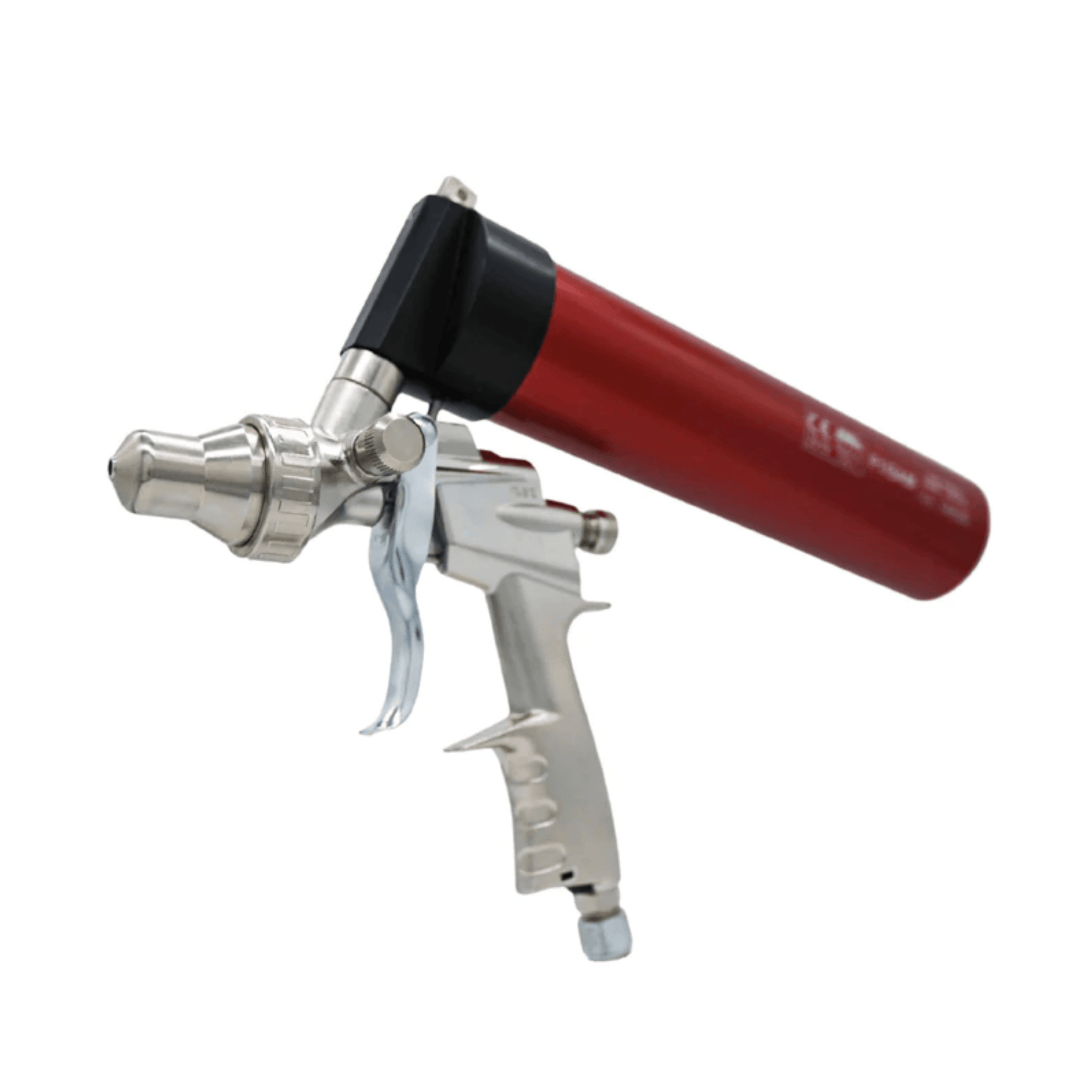

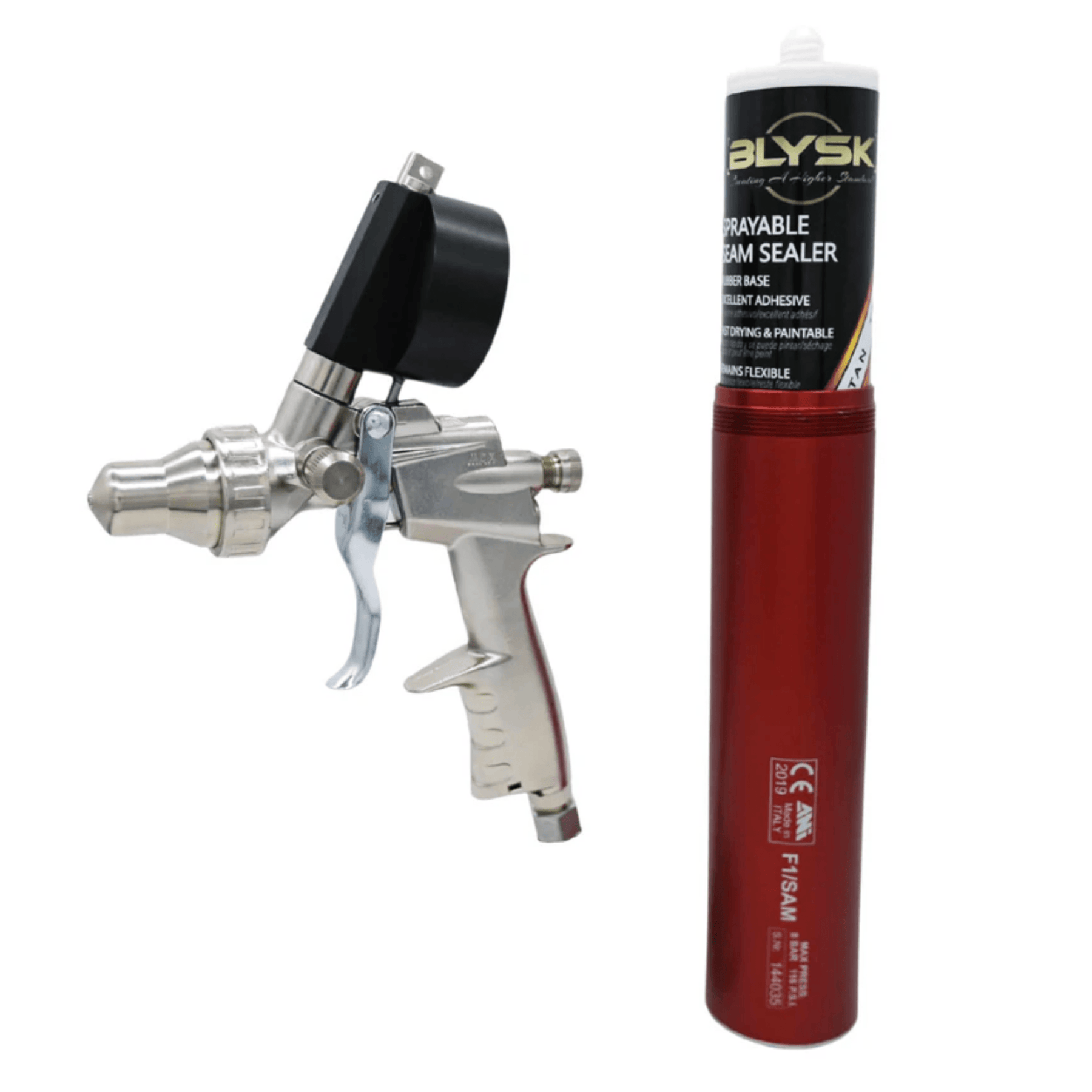

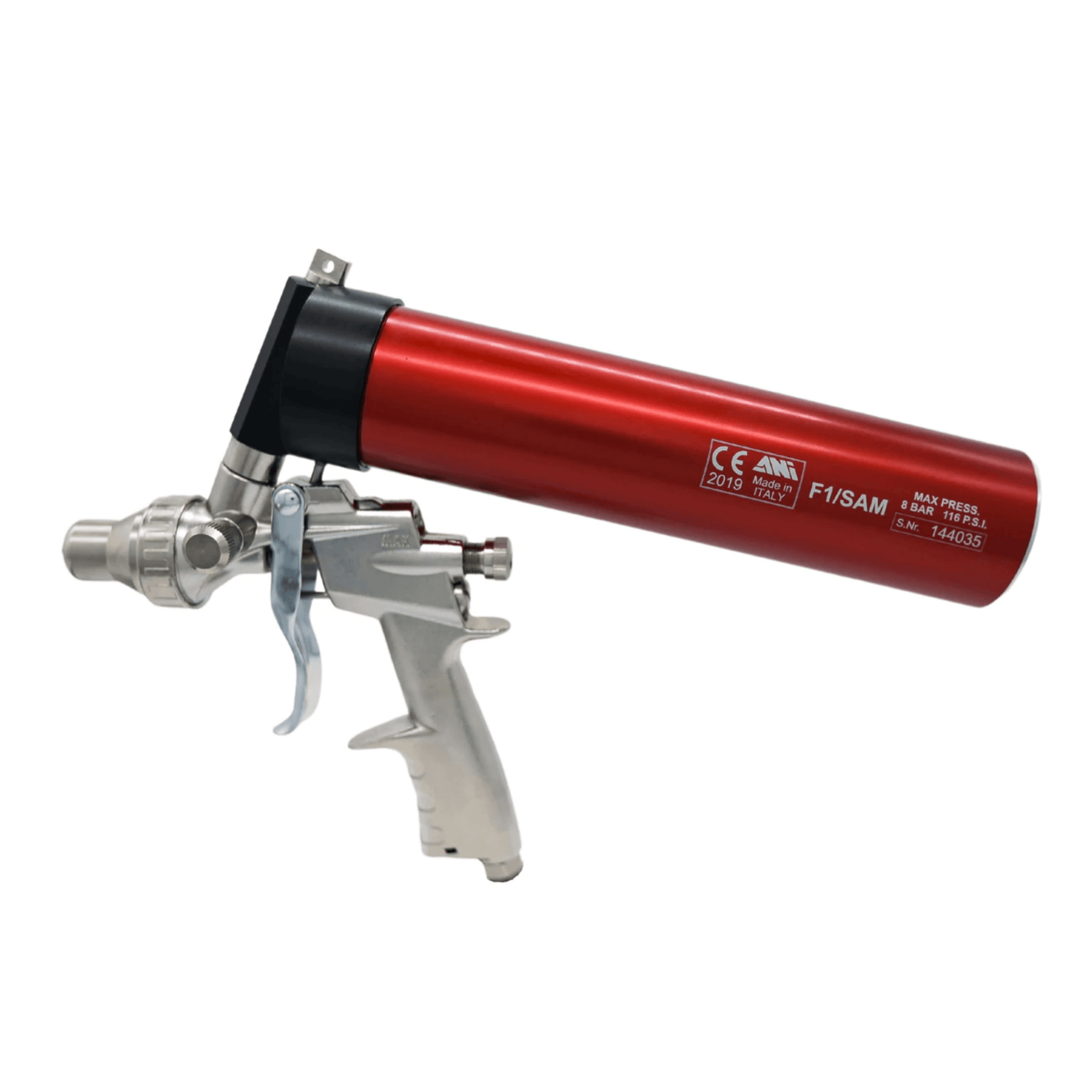

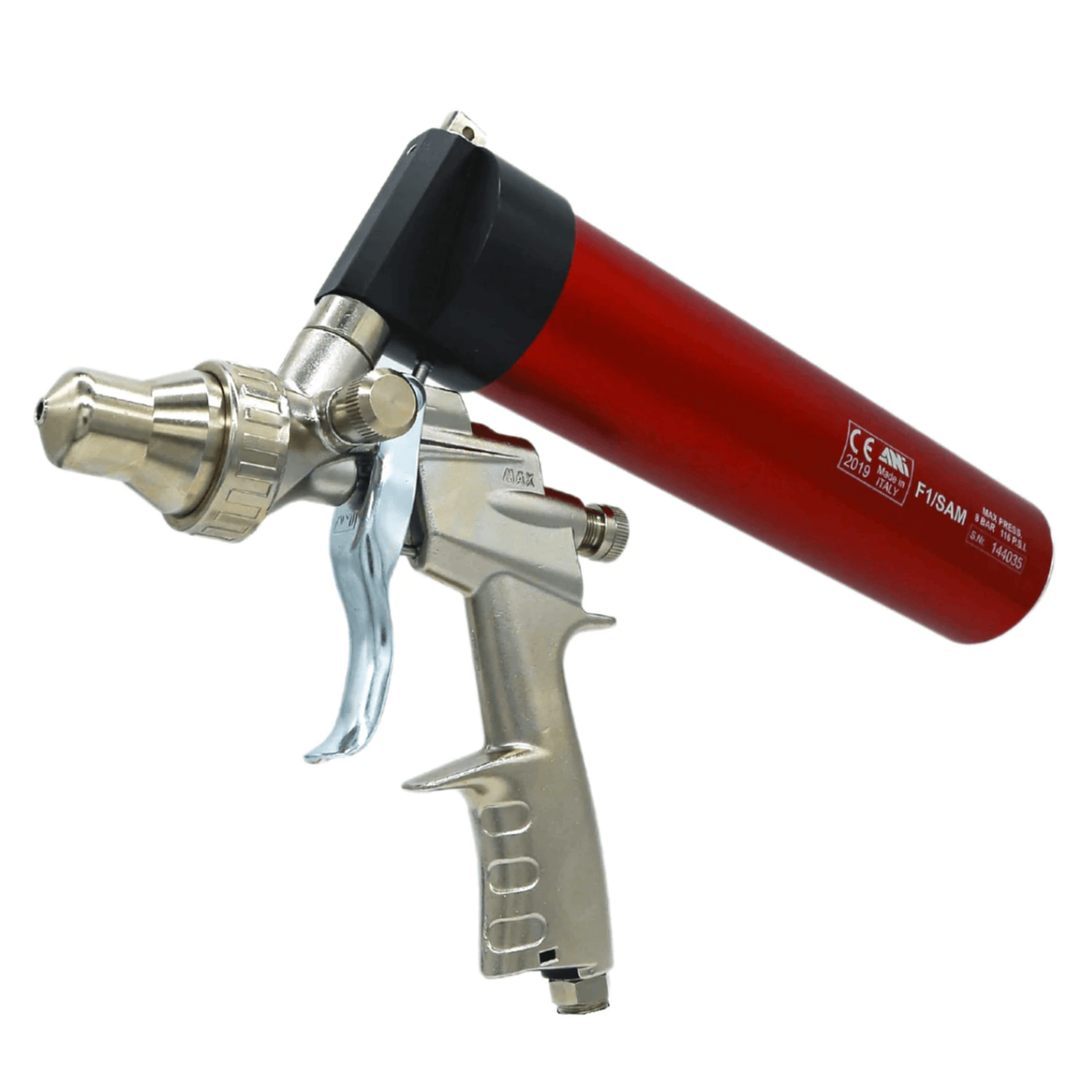

Ani F1/SAM Sprayable Seam Sealer Gun

Professional gun for extrusion and spraying of single-components sealants products in plastic or metallic cartridges. Its spray nozzle regulator can deliver the product in various grains (orange-peel effects), form beads of various widths using the threaded cap (supplied as optional) and the nozzles supplied together with the cartridges. The air pressure is directly applied on the cartridge plunger. When the trigger is released, the valve discharges the residual air of the spray gun allowing thus a safe disassembling of the feed cup. The standard gun is supplied with spraying cap for orange peel effect.

• Die-cast aluminum alloy body with electrolytic nickel treatment and anodized aluminum cartridge holder tube.

• Zinc-plated steel nozzle and nickel-plated brass spray cap • Stainless steel AISI 303 needle ø 4 mm

• Grain thickness regulator (orange peel effect) and product flow regulator

• Zinc-plated steel lever; brass and aluminum inner parts • Steel springs and internal; washers in PTFE and NBR

• FIELDS OF APPLICATION: Application of single-component sealants in 310 ml plastic cartridge with M15X2.5 thread or aluminum cartridge with M15X1.5 thread

• OPERATING TEMPERATURE: -10°C (253°K), +90°C (343°K)

• OPERATING PRESSURE: 1.5 ÷ 8 bar ( 21.75 ÷ 116 psi)

• DIMENSIONS: 355x250x60 mm (13.96x9.84x2.36 inch) • NET WEIGHT: 0,927 kg (2.043 lb)
